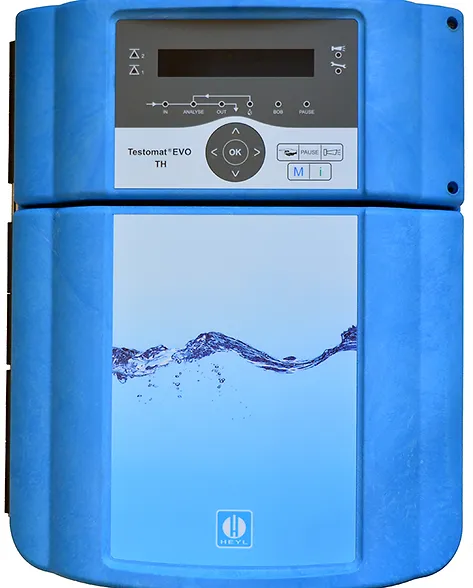

Testomat EVO TH

Enhance Water Analysis with the Testomat EVO: An Online Hardness Analyzer

Optimize water quality testing with the Testomat EVO®, an automated solution designed for total hardness determination utilizing precise titration. Real-time measurement results are promptly displayed on the integrated interface, ensuring immediate access to readings.

The Testomat EVO® offers optimal efficiency, characterized by minimal reagent consumption and straightforward maintenance, resulting in significant cost reductions. Maintaining the high accuracy standard synonymous with our flagship analyzer, the Testomat2000®, the Testomat EVO® underscores our longstanding expertise.

Derived from years of specialization, the Testomat EVO® stands as an example of quality and precision. Versatile and adaptable, it caters to diverse needs, reflecting our commitment to advanced water testing equipment.

Prime Application Areas of the Analyzer:

Water treatment plants/water softening, reverse osmosis systems
Steam Boiler applications
Hospitals
Pharmaceutical applications
Industrial applications
Public water systems

Water Supply

Operating pressure:
0.3 to 1 bar (4.4 to 15.4 psi) or
1 to 8 bar (14.5 to 116 psi)
Water inlet: 1/4-in inlet fitting
Water outlet: Opaque hose with an internal diameter of 0.55 inch
Water temperature: 50 to 104 °F (a cooler can be installed for temperatures above 104°F)

Technical Data

Power supply: 100 - 240 VAC, 50-60 Hz
Power consumption: Max. 230 V without external load
Output signal: 0/4 - 20 mA and dry signal
Protection class: I
Degree of protection: IP 54
Ambient temperature: 50 - 104°F
Dimensions: (W x H x D): 10.6 x 13.8 x 5.8 inch
Weight: 11.7 lb

PRODUCT DETAILS	TOTAL HARDNESS	QUANTITY in ml	ORDER NUMBER
TH 2005	0.89 - 8.93 ppm	500	152005
TH 2025	4.5 - 44.8 ppm	500	152025
TH 2100	18 - 179 ppm	500	152100
TH 2250	45 - 448 ppm	500	152250

FLYER	MAINTENANCE	MANUAL
